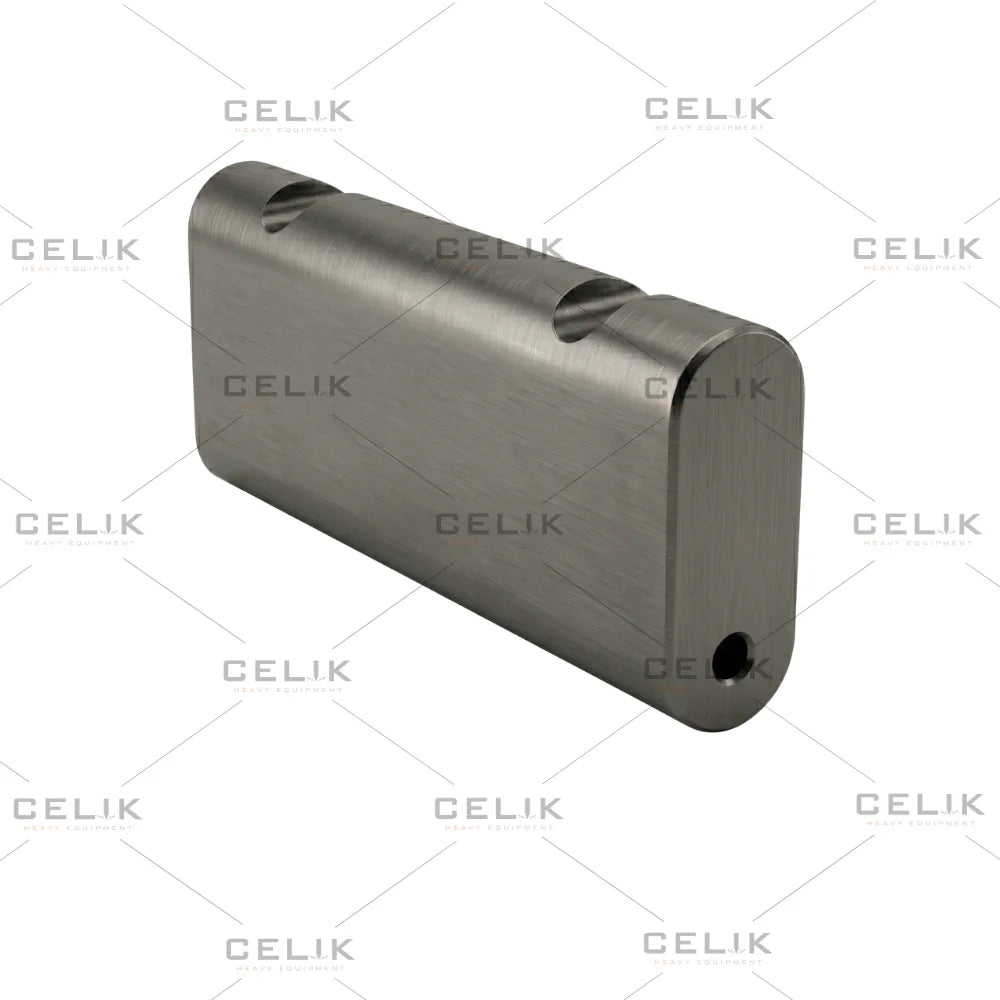

Hydraulic breaker tool retainers and locking pins are responsible for securing the working tool (chisel) inside the breaker front head. They prevent unintended tool ejection, control axial movement and maintain correct positioning during high-impact operation.
Because these components are exposed to repeated impact forces and vibration, wear typically occurs at contact surfaces and locking interfaces. Over time, this can lead to increased tool movement, reduced impact efficiency and abnormal wear patterns on both the tool and front head assembly.
How Often Should Tool Retainers and Pins Be Inspected?
Inspection is recommended during every routine breaker service or whenever the tool is removed. In high-intensity quarry and mining operations, more frequent checks are required.
Key inspection points include:
- Wear on locking surfaces
- Deformation or rounding of pin edges
- Excessive clearance between tool and retainer
- Cracks or surface fatigue
- Reduced locking force
How Can You Tell if Retainers and Pins Are Working Properly?
Proper function is indicated by:
- Stable tool positioning during operation
- No abnormal axial movement of the chisel
- Consistent impact energy transfer
- Even wear on the working tool
- No vibration caused by loose tool fitment
When Should Tool Retainers Be Replaced?
Replacement is required when:
- Locking surfaces are worn or deformed
- Tool movement becomes noticeable during operation
- Cracks or fatigue marks are visible
- Retention force is reduced
- Uneven wear develops on the tool shank
Delaying replacement increases stress on the chisel, front head and internal impact components.
OEM vs Aftermarket Retainers and Pins
Original components are manufactured to defined dimensional and hardness specifications to ensure correct tool retention and safe operation.
Replacement-grade components must maintain consistent hardness, impact resistance and dimensional accuracy to ensure stable tool positioning under cyclic loading conditions.
Why Choose Celik Heavy Equipment Retainers & Pins?
Celik Heavy Equipment supplies tool retainers and locking pins designed for hydraulic breaker tool retention systems.
Key characteristics:
- Heat-treated alloy steel construction
- Controlled surface hardness for wear resistance
- Machined tolerances for correct tool fitment
- Consistent dimensional repeatability
- Compatibility with major breaker brands and tool profiles
What is the function of a tool retainer in a hydraulic breaker?
It secures the working tool inside the breaker front head and prevents axial movement during impact operation.
What causes retainer and pin wear?
Wear is caused by repeated impact loading, vibration, poor lubrication conditions and extended operation with worn tools.
How often should retaining pins be replaced?
Replacement is required when wear affects tool stability or when deformation reduces locking performance.
Why is correct tool retention important?
Incorrect retention can lead to tool instability, reduced impact efficiency and accelerated wear of the breaker front head and chisel.
